The MELAtherm 10 is a washer disinfector complying with the EN 15883 European Standard. It is ideally used in processing instruments by machine.
With compact external dimensions, the MELAtherm 10 offers full features without any additional charge:

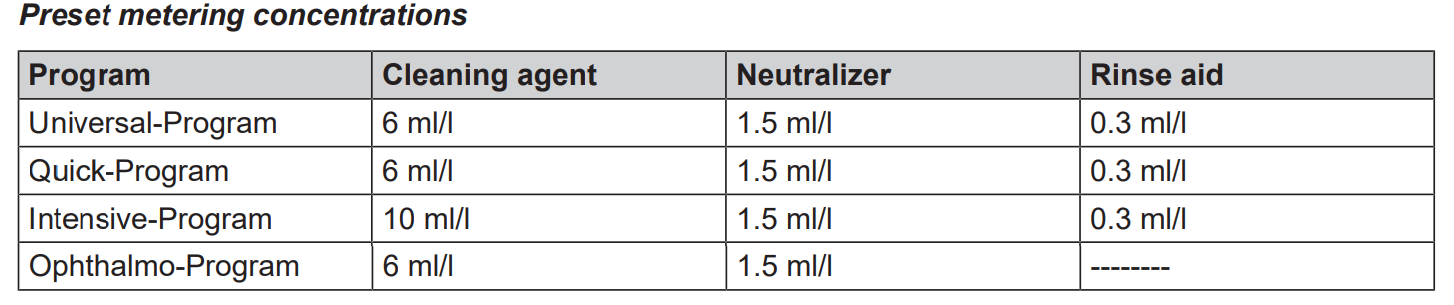

Feeding process agents with the dosing unit
Batch documentation with the CF card or network
Active drying in accordance with the Standard
MELAtherm10 automatically monitors the rotation of the rinse arms, the rinse pressure and the filter sieves. Errors in the program mode or during operation are thus prevented. MELAtherm 10 can be fitted in floor units without any problem, the standard width being only 60 cm.
Should the MELAtherm 10 be free-standing next to the floor unit, MELAG offers a stainless steel cover plate. The optional floor unit, also available, facilitates ergonomic working height and creates additional storage space. MELAtherm 10 will need a basis basket, with or without injector rail, at your option. Up to 11 hollow body instruments can be processed with the injector rail, e.g. suction tubes or dental handpieces and contra angles

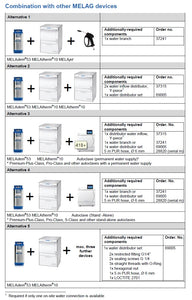

To find a guide on what set up of accessories is right for you take a look at the Melatherm packages

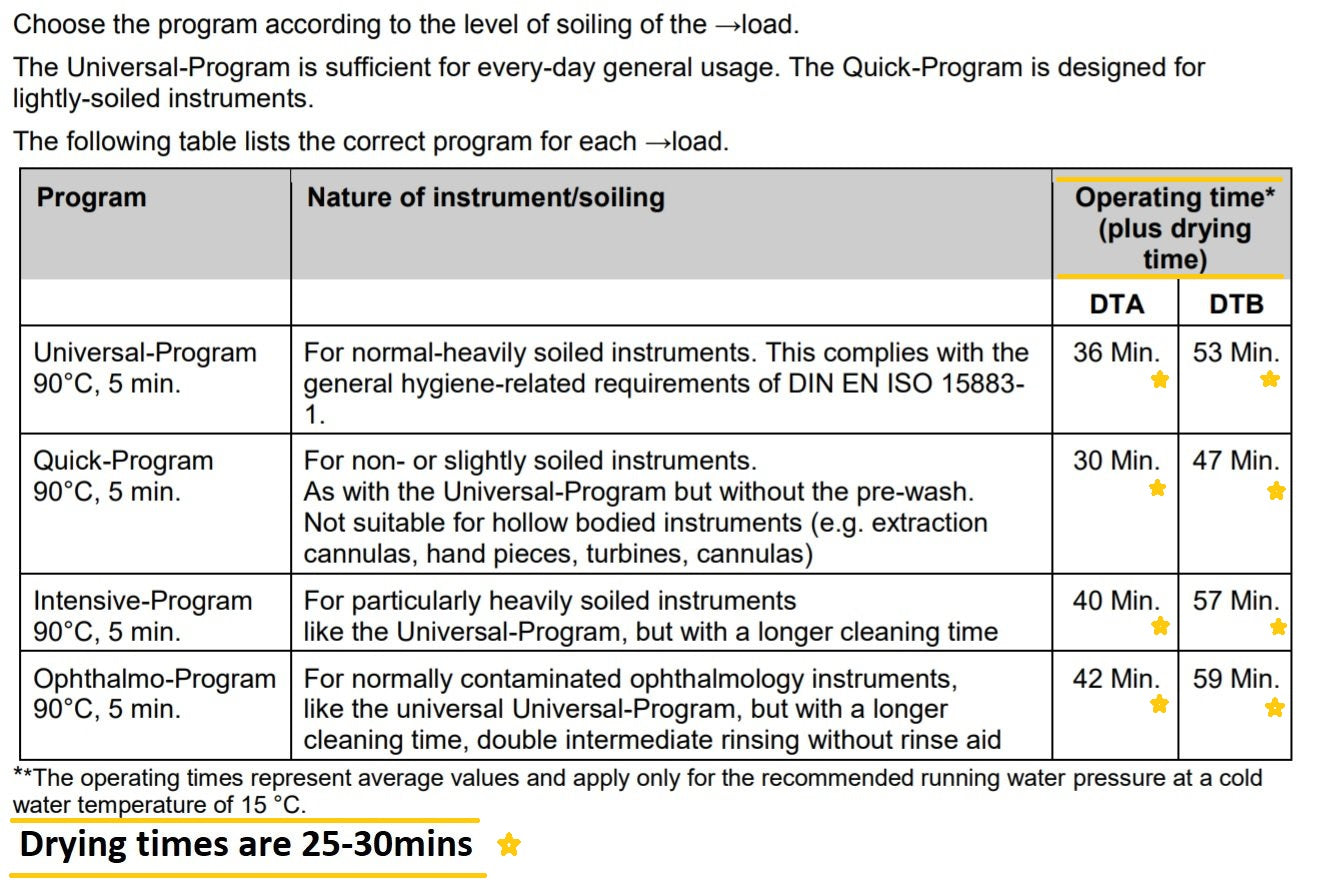

MELA therm® 10 is available in the versions 400 volt (threephase current, MELA therm® 10 DTA) and 230 volt (alternating current, MELA therm® 10 DTB). If the installation location permits connection to a 400 volt power supply, we recommend the MELA therm® 10 DTA due to its significantly lower operating times.
For a PDF brochure with more information please click here
Whats included in the price - Built in data logging, CF card, one set of chemicals and the labour cost for a Melag Technician to perform Install Qualification (IQ) and an Operational Qualification (OQ). Freight for the washer disinfector, travel for the Melag technician and the Performance Qualification (PQ) are at the purchasers expense.
The Melatherm requires Salt on installation and periodically through its life. We recommend buying local as it is a lot cheaper on freight.
